Cube 360-2V Prof. Edition with 1 vertical line 1 horizontal line of 360°

ADA CUBE 360-2V PROF. EDITION

Laser with 2 vertical lines 1 horizontal line 360° incl. tripod and bag

The line laser ADA CUBE 360-2V is characterised by high precision, appreciated by professional users and home users alike for its functions.

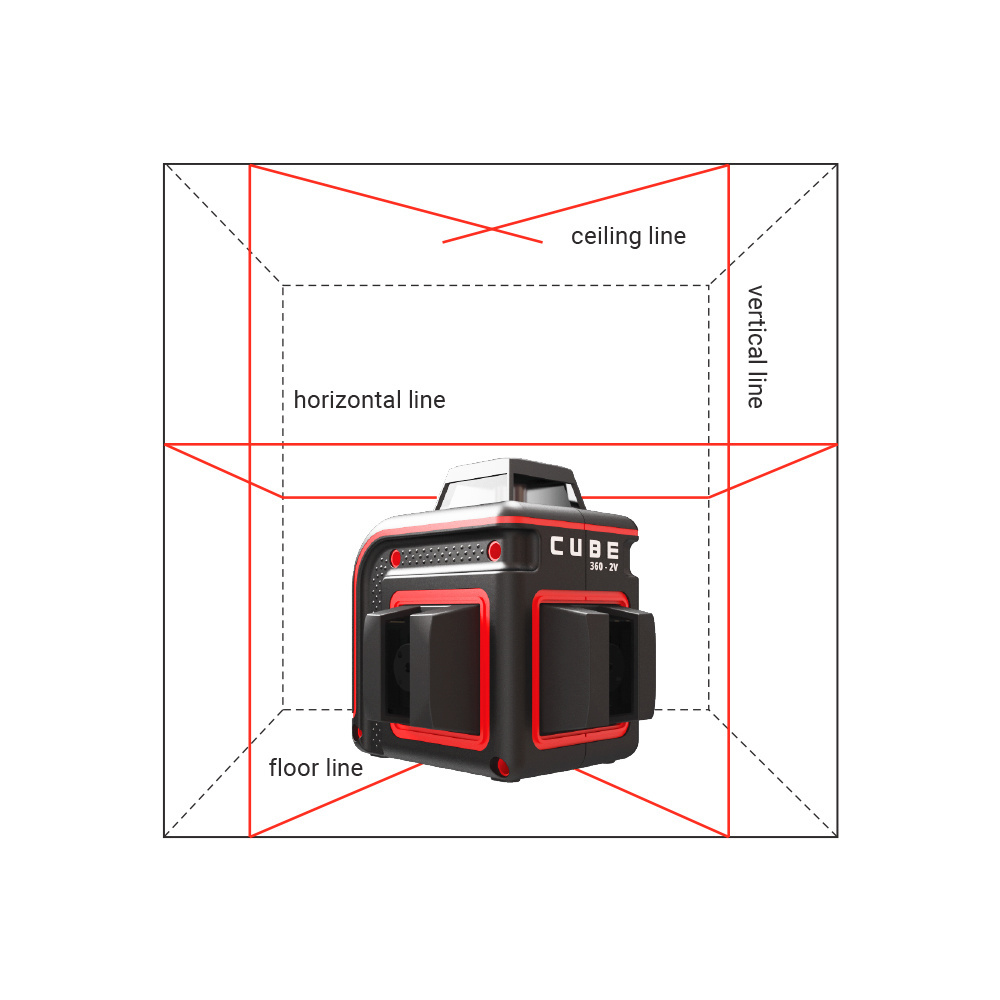

Convenient marking. The line laser projects 2 vertical lines and a horizontal line at 360°. It is not necessary to rotate the device for horizontal marking.

Simply place the ADA CUBE 360-2V at the chosen height. The horizontal bar will run along the perimeter. When the vertical line is switched on, there is a 90° projection (laser cross).

It is possible to switch off the laser lines separately. Simply select the line you need for a job.

Accurate levelling. Automatic self-levelling. ADA CUBE 360 2V is characterised by high accuracy - the error is only 0.3 mm/m.

Receiver mode. There is a receiver mode for outdoor use in bright light.  The range of the laser increases from 20 to 70 m. (Receiver ADA LR-60)

It is possible to place the ADA CUBE 360-2V on the tripod or mount it on the wall thanks to the 1/4" thread. One thread is located on the back of the unit, the other on the bottom.

TILT mode. In this mode, it is possible to tilt the instrument to any angle. It is sufficient to lock the pendulum and turn the on/off switch to the middle position. The laser beams are projected with the desired tilt. This function is used, for example, when adjusting stair railings.

Specifications:

*In the most favourable conditions

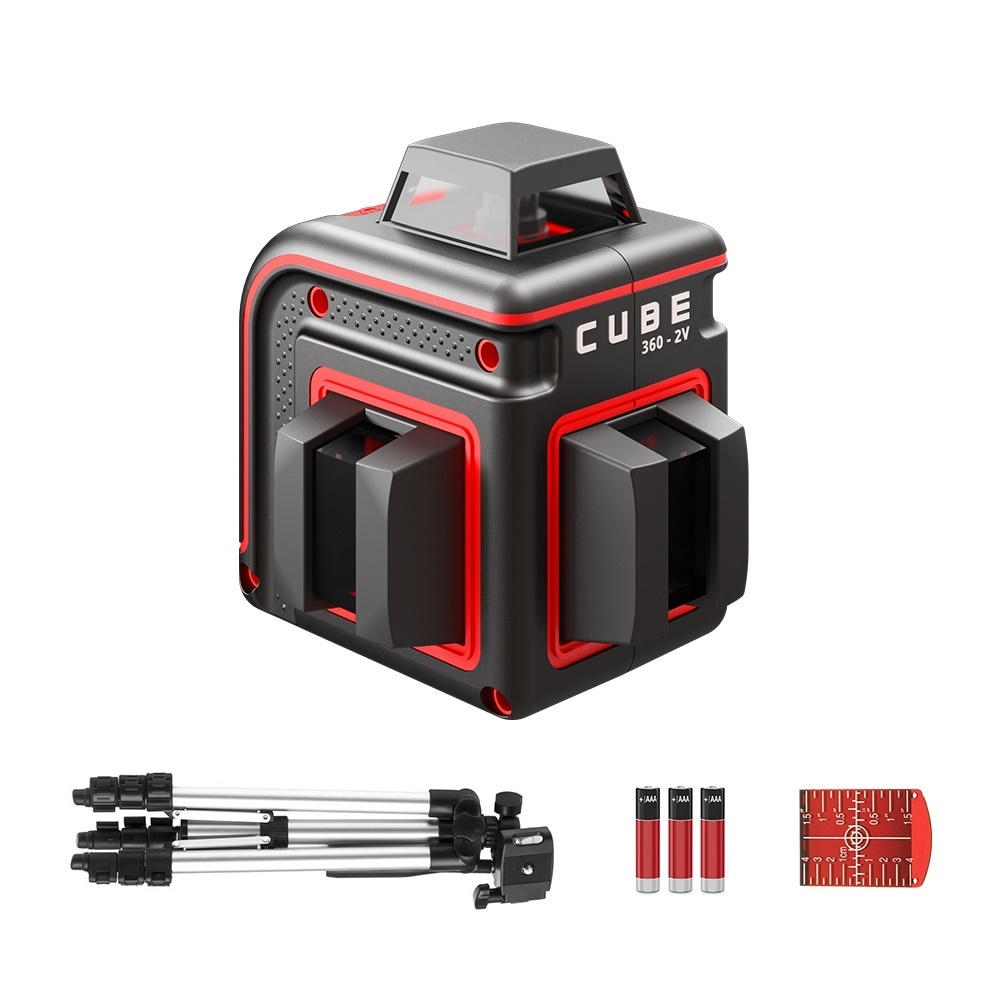

Including:

• ADA CUBE 360
• Target
• Tripod
