CUBE Basic crossline laser
| Article number: | A00341 |
| EAN: | 4620764636831 |
- 2 years Warranty
- Working days orderd before 17:00 hours same day send
- Whatsapp your questions to +31-655117271
- send a email to [email protected]
- Ordered before 4 pm, shipped the same day
ADA Cube BASIC EDITION

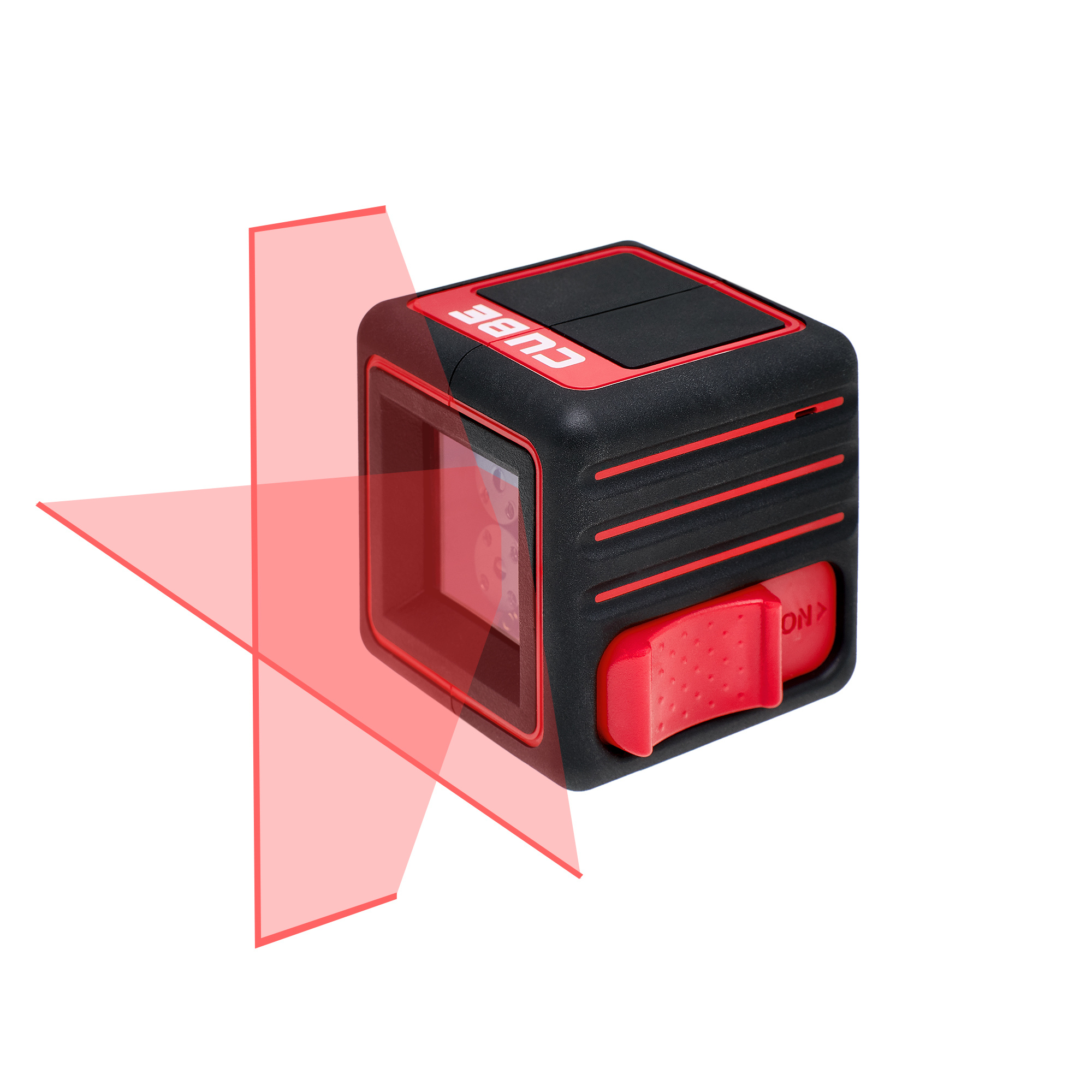

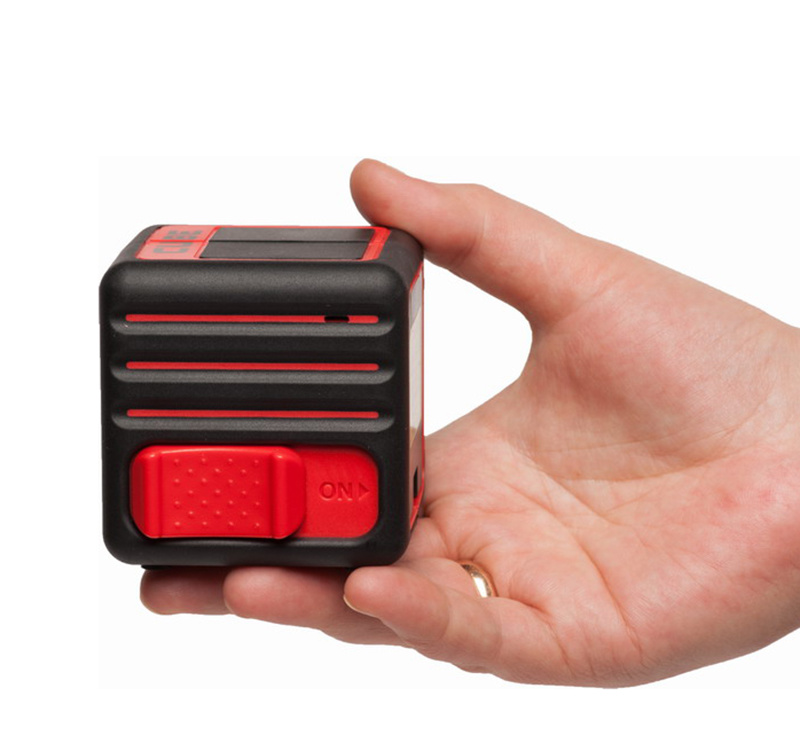

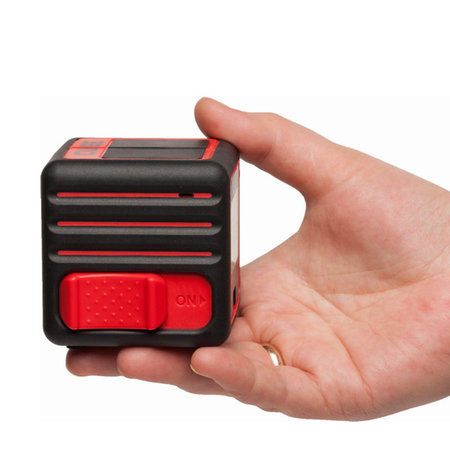

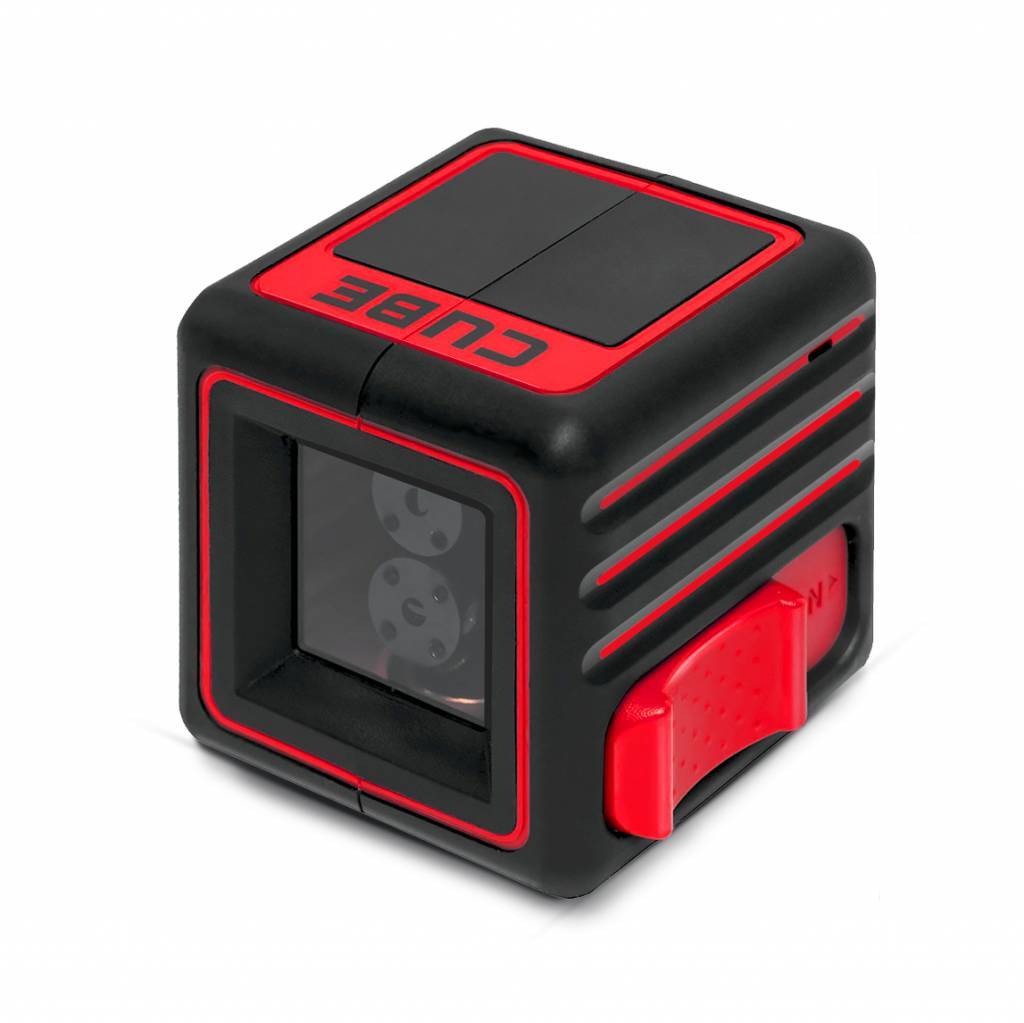

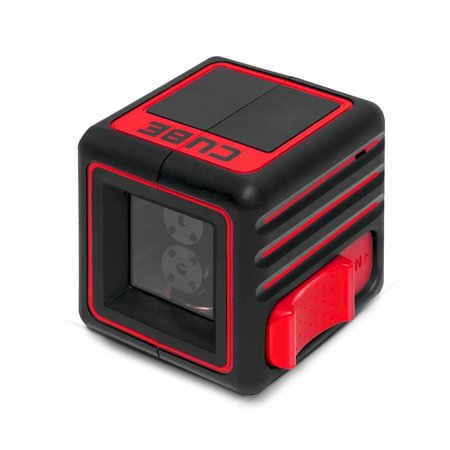

is the most compact laser level. It projects perpendicular laser beams in the form of a cross. With the help of ADA Cube you can do any work with marking: to hang a shelf or picture on the wall, to hang wallpapers, to place conduit for electric wiring, to set guides for suspended ceiling and so on. The housing is made in the form of cube. The size of edge is only 6.5 cm. Rubber parts protect instrument from damages. Due to the ribbed surface the instrument doesn’t slip out from your hands.
Thread 1/4" on the bottom of the instrument allows to set it on the tripod or universal mount. Switching on and unblocking with one button. Separate laser emitters are used to project laser lines. It allows to get clear and bright laser lines. Pendulum suspension goes fast into vertical position. Maximum deviation from vertical axis is 3°. Acoustic alarm is given when the instrument is out of self-leveling range.
Specifications:
| Laser projection | 1Н 1V |
| Working range | 20 m |
| Accuracy | ± 0,2 mm/m |

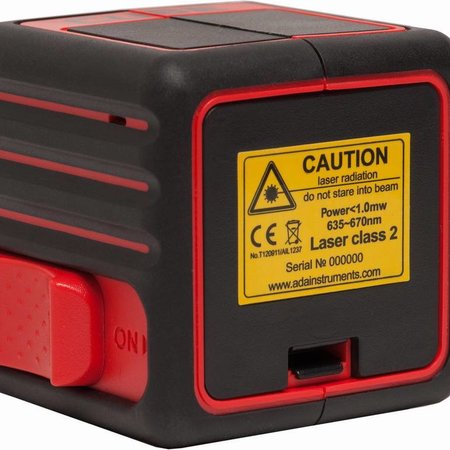

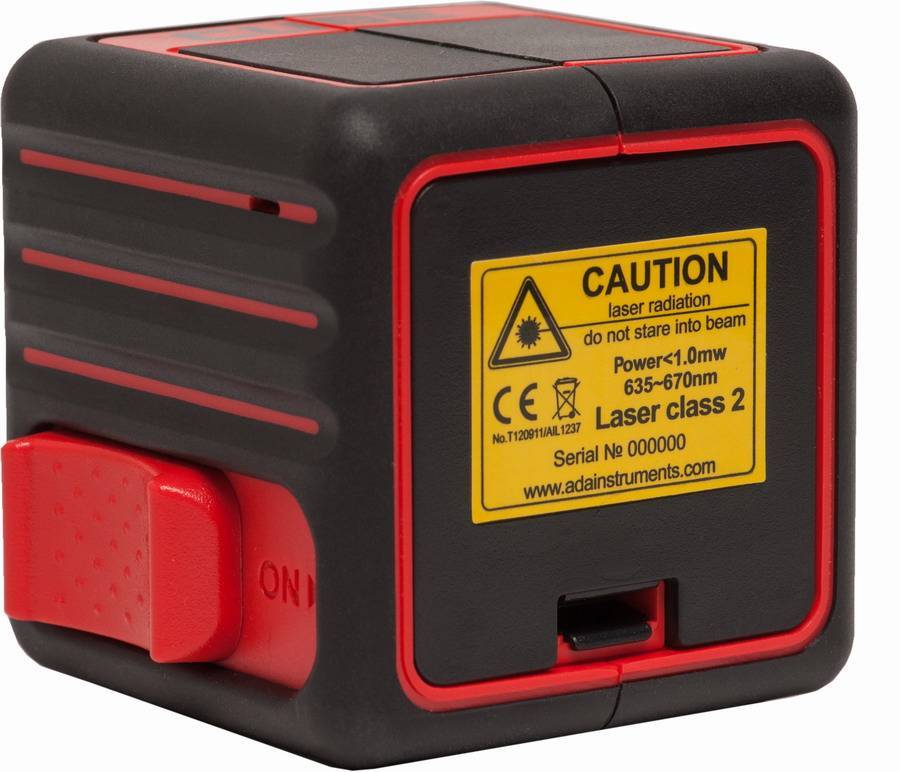

| Laser diode | class 2, 635 nm, < 1 mWt |
| Dust/water protection | IP 54 |
| Power supply | 2 batteries АА / 1.5 V |
| Tripod thread | 1/4" |
| Dimensions | 65х65х65 mm |
| Weight | 0,24 kg |
Including:
- ADA Cube Basic Laser
- Batterys
