6D SERVOLINER Red 8-Line laser with Li-ion batterie
| Article number: | A00621 |
| EAN: | 4627151051291 |
- 2 years Warranty
- Working days orderd before 17:00 hours same day send
- Whatsapp your questions to +31-655117271
- send a email to [email protected]
- Ordered before 4 pm, shipped the same day

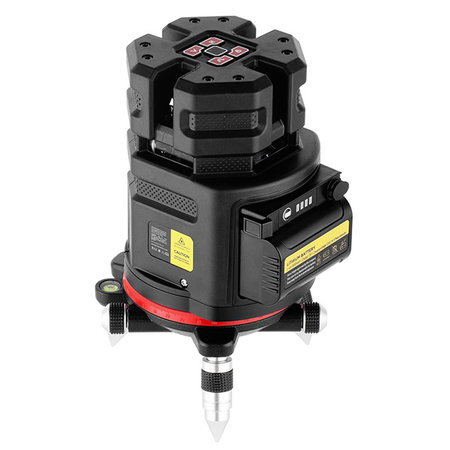

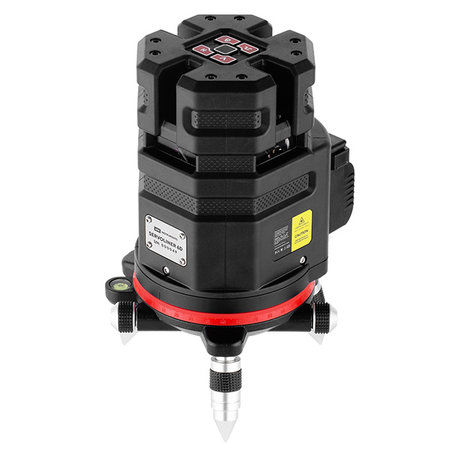

ADA 6D SERVOLINER RED
is easy to use. It is designed for horizontal and vertical measurements.
Line laser ADA 6D Servoliner is a professional line laser for construction and repair work. ADA 6D Servoliner is a tool with rotary base and combined laser scan: circle horizontal plane 360°, laser plumb down (dot), perpendicular vertical planes. Due to this, the tool has maximum functionality and is suitable for all types of marking work.

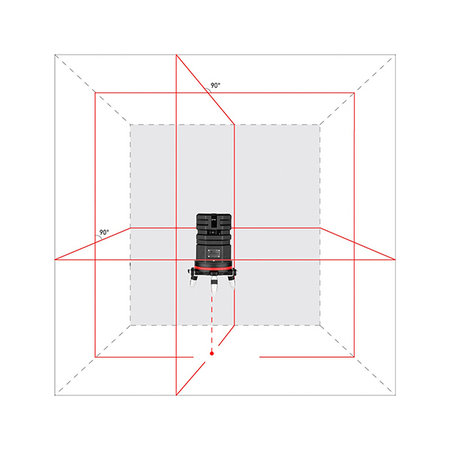

ADA 6D Servoliner projects circle horizontal laser line 360º. It can be placed in any place. A laser dot on a horizontal line will allow you to mark out at long distances when the line is not visible. For vertical marking, you can turn on the vertical laser lines one by one. With the help of laser plumb down it is possible to set ADA 6D Servoliner on initial dot on the floor.
The most advanced servo control system allows you to work with the highest precision not exceeding an error of ± 1 millimeter per 10 meters. With the help of servo drives, by turning on a special mode, you can set the required slope of the laser lines.

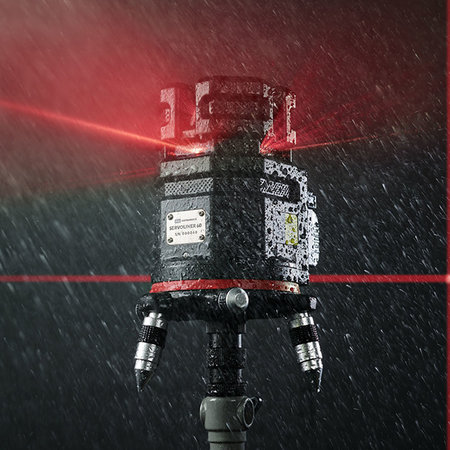

The housing of the ADA 6D Servoliner has been designed based on the requirements for professional equipment for construction sites. External, powerful rubber housing protection, internal housing stiffening ribs, dust and moisture protection elements protect the device as much as possible. ADA 6D Servoliner easily resists shocks, construction dust and moisture.
At the base of the housing there is a rotary part for smooth and accurate guidance of vertical lines. Due to the smooth adjustment knob, the device rotates left and right by 360 ° around its axis.
The distance increases up to 70m in the detector mode.
ADA 6D Servoliner can be attached to a wall mount or a tripod with the help of the thread 5/8ʺ.

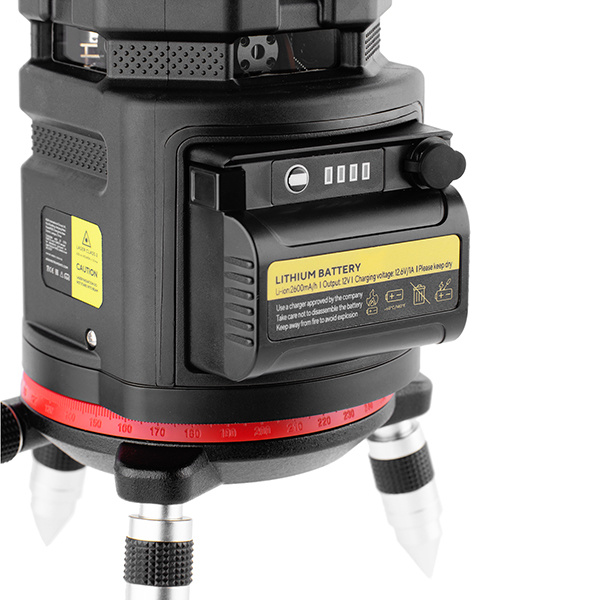

ADA 6D Servoliner is supplied with battery compartment and rechargeable Li-battery with the charger. It takes a few seconds to change rechargeable Li-battery into the battery compartment. ADA 6D Servoliner comes in the case for convenient storage and transportation.
Specifications:
| Laser projection | 4H (360°) 4V 1D |
| Working range | 10 m / 50 m (with receiver) |
| Accuracy | ± 0,1 mm/m |
| Self-leveling range | ± 3,5° |
| Laser diode | class 2, 635 nm, < 1 mWt |
| Dust/water protection | IP 54 |
| Operating temperature | -10...+40° C |
| Power supply | 4 batteries АА / 1.5 V- Li-ion pack |
| Tripod thread | 5/8 x 11 |
| Dimensions | Ø152Х223 mm |
| Weight | 3,4 kg |

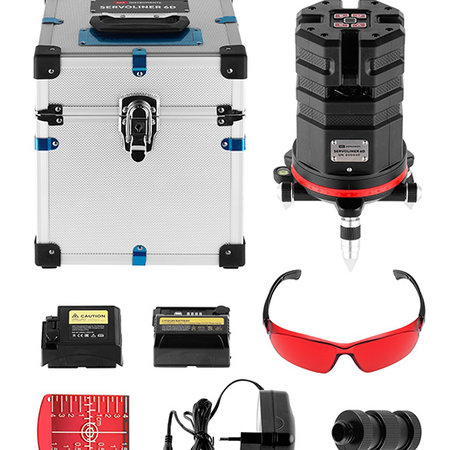

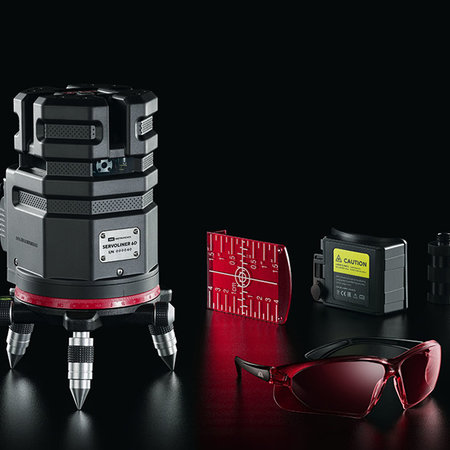

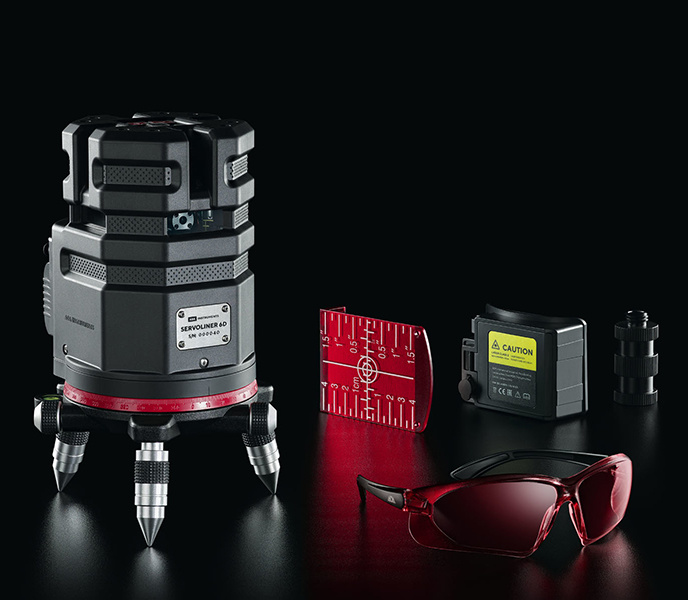

Includes:
- 6D Servoliner RED
- Li-ion Batteries
- Battery holder
- Charger
- Screw-extender
- Laser glasses
- Laser target
- Case
