PROF-X32 Level Meter
| Article number: | A00121 |
| EAN: | 4620764630228 |
- 2 years Warranty
- Working days orderd before 17:00 hours same day send
- Whatsapp your questions to +31-655117271
- send a email to [email protected]
- Ordered before 4 pm, shipped the same day

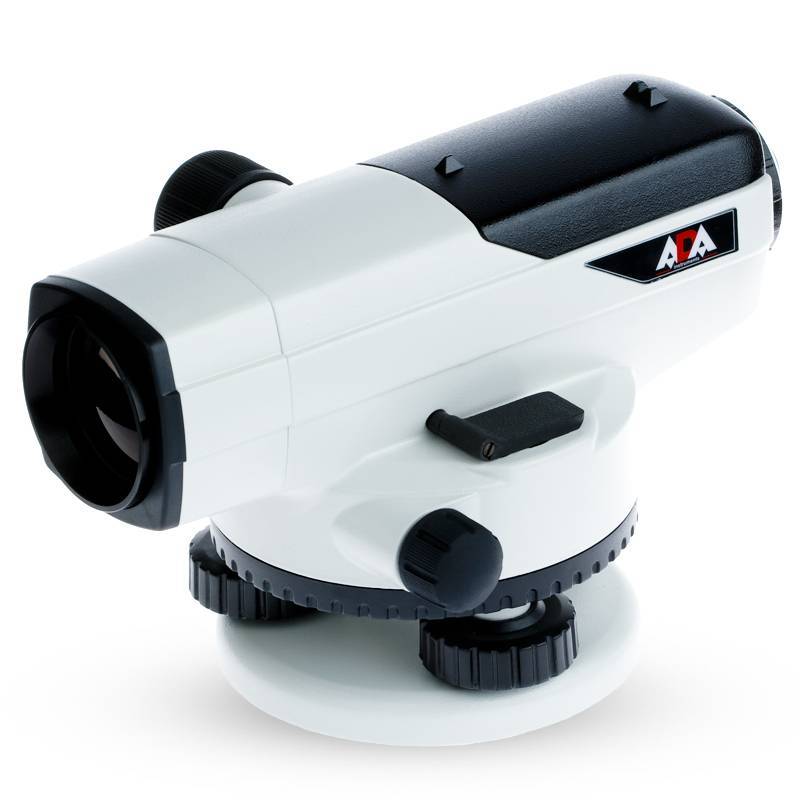

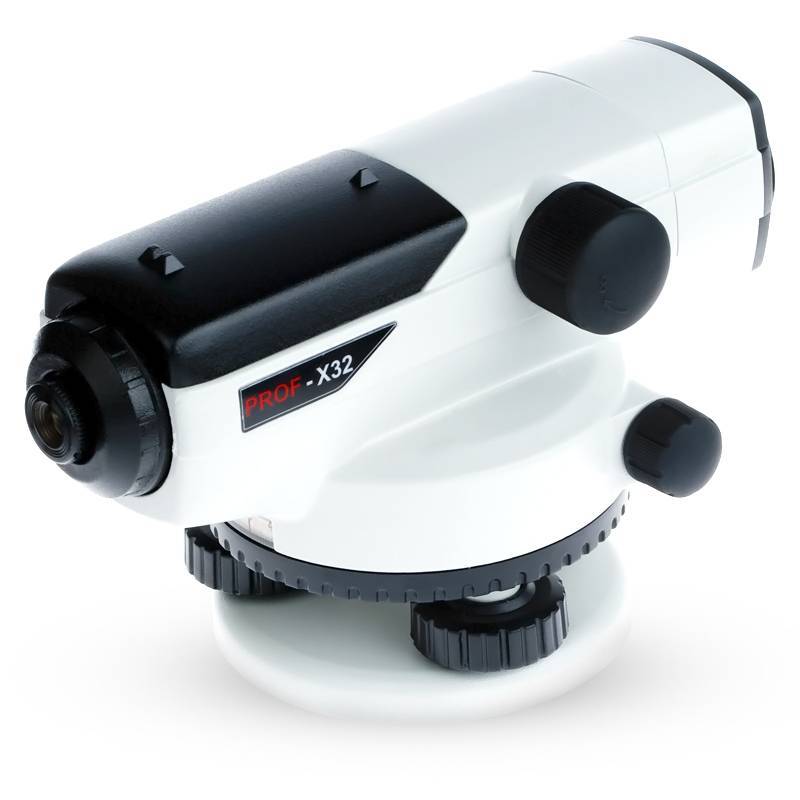

ADA PROF-X32 Spirit level instrument
Automatic spirit level ADA Prof-X32 is equipped with automatic compensator with magnetic
damper. When the instrument is adjusted with circular level, the mechanism
of automatic compensation fixes the line of sight in the horizon.
The instrument is designed to provide stable work despite environmental conditions
such as vibrations and large temperature fluctuations. Optical spirit level has horizontal
limbs for angle measurement and stages bristles of reticule can be used for
distance measurements.
Automatic spirit level ADA PROF-X32 is designed for general surveying,
engineering and construction work.
Specifications:
Model X32
View Upright
Magnification 32x
Objective diameter 42 mm
Field of view at 100m -
Shortest distance to target 0.3 m
Multiplication factor -
Compensator working range ±15'
Setting accuracy < 0.5
Horizontal edge reading 360
Sensitivity of the vial 8'/2 mm
Standard deviation
for 1 km double leveling 1.5 mm
IP classification IP54
Screw thread connection 5/8
Including: Case, Manual & Plumb
