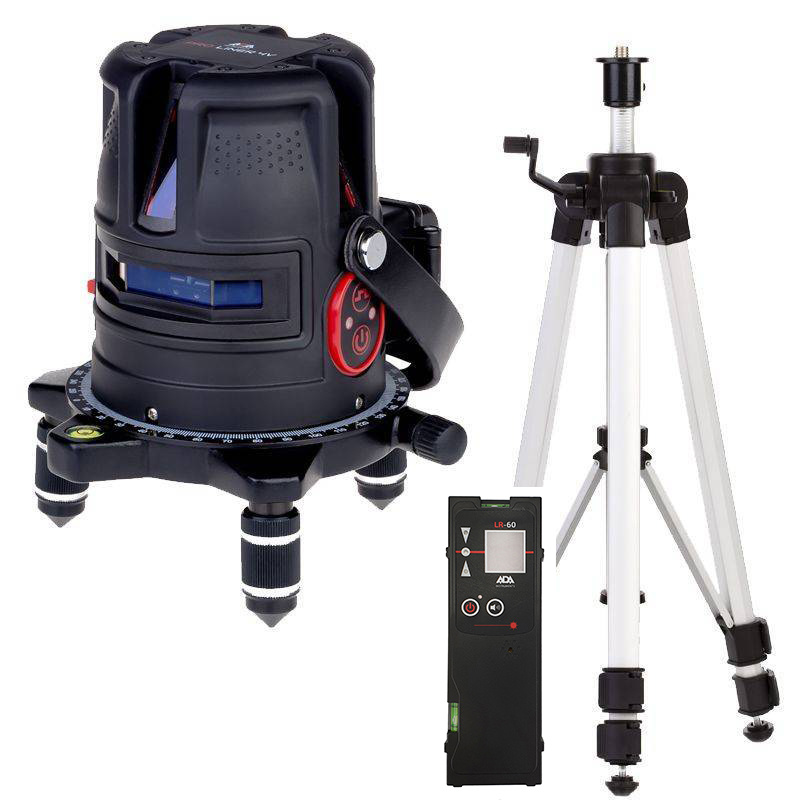

PROLiner 2V Incl. LR-60 Receiver and TRP-170 Tripod
Article number: | A04721 |
EAN: | 4620764638835 |
- 2 years Warranty
- Working days orderd before 17:00 hours same day send
- Whatsapp your questions to +31-655117271
- send a email to [email protected]

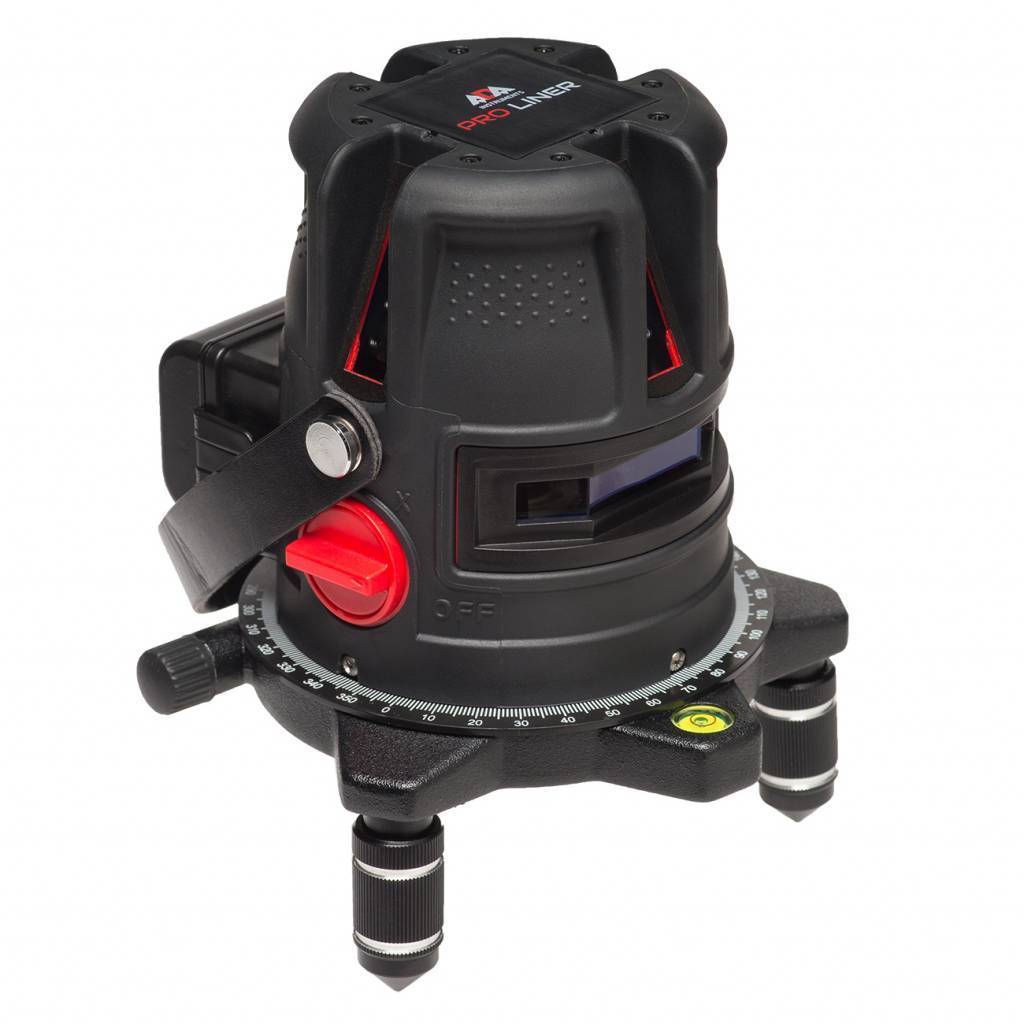

ADA PROLiner 2V cross line laser
Line laser ADA PROLiner 2V/4V– is a line laser for professional usage in the construction and repair. It is ideal instrument during construction and repair works when paving tile laying or other coating, wallpapering and so on.

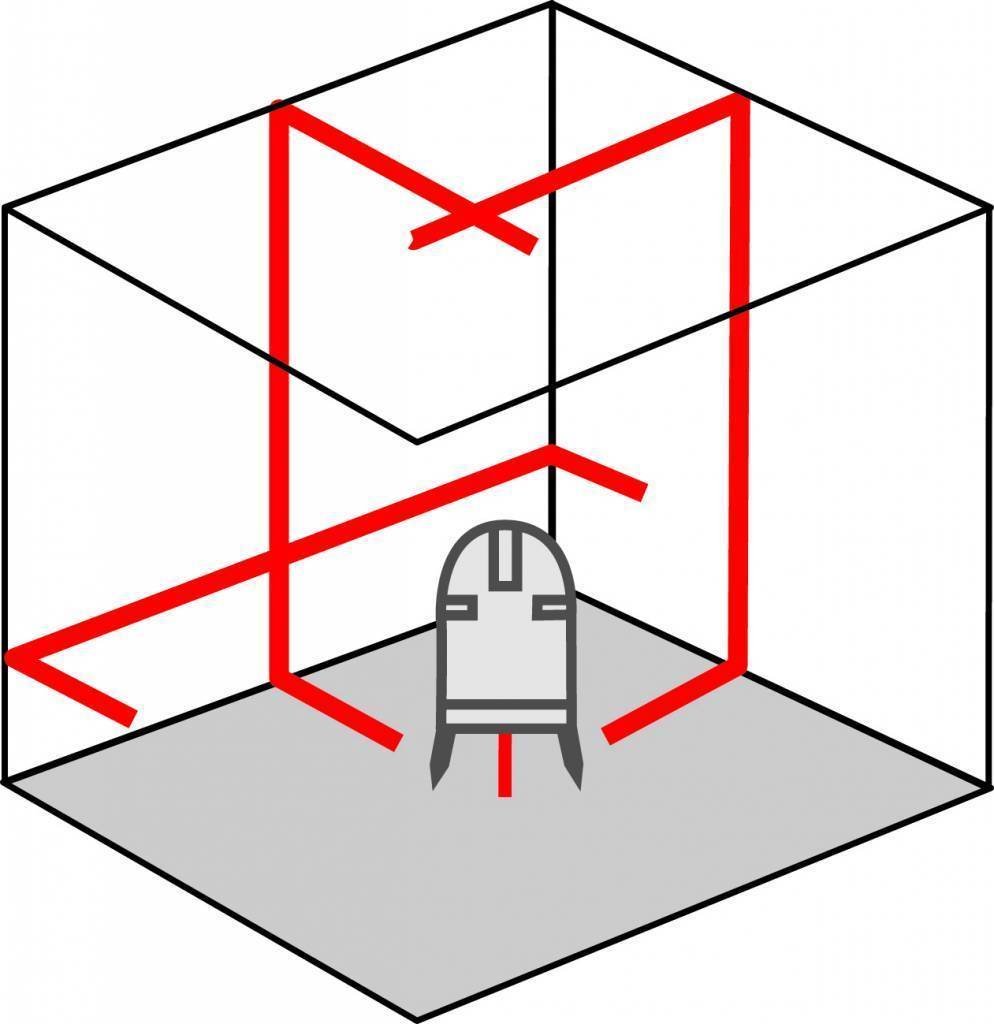

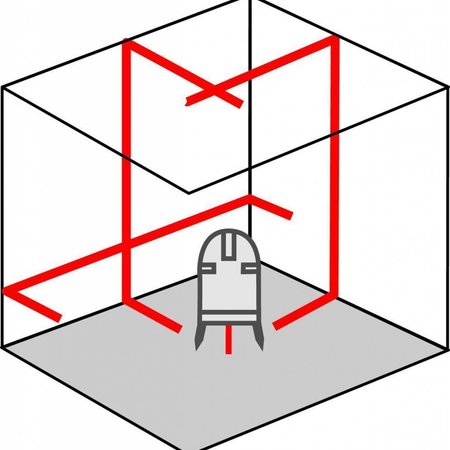

Convenient marking with laser. Laser level projects horizontal laser line in the sector 120°. There are two perpendicular planes when switching on vertical lines. It is possible to switch off laser lines one-by-one. Just select the line that you need for a work. Laser plumb down helps to detect the dot on the floor.
Automatic self-leveling. Automatic self-leveling when deblocking of pendulum. Locking switch has intermediate position. The pendulum is locked in the intermediate position. But it is possible to switch on laser lines. However laser lines will be projected with desired inclination. Such function is useful, e.g., when setting stairs.

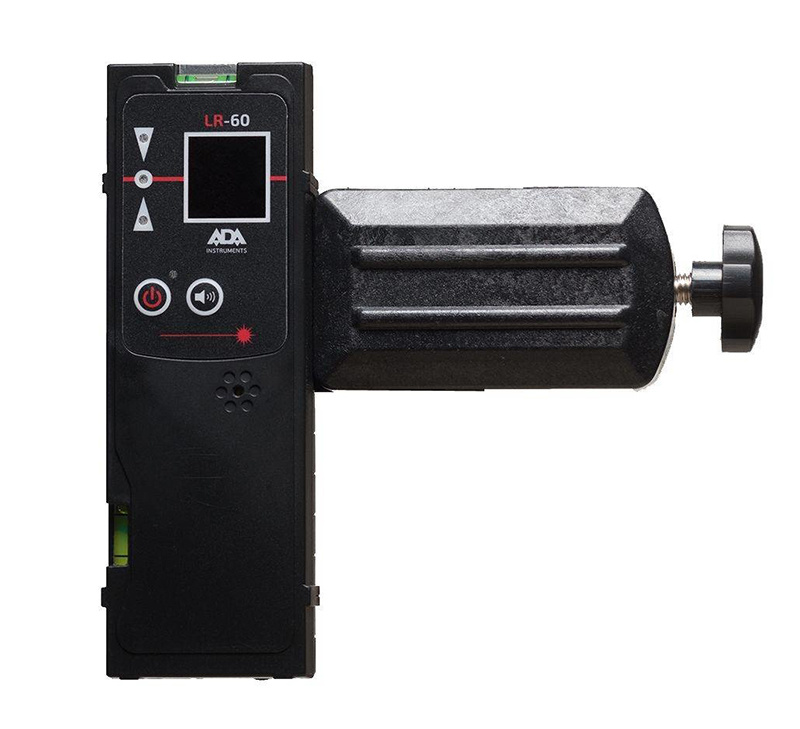

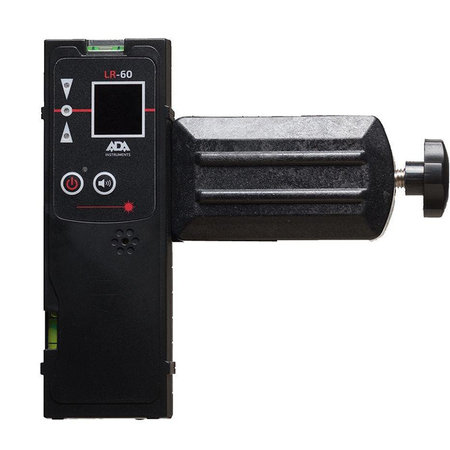

Receiver mode. There is a receiver mode for outdoor operation under bright light. The range of the marking increases from 20 to 70m.
Setting on the tripod. It is possible to place ADA PROLiner 2V/4V on the tripod or attach to the wall mount due to the thread 5/8".
Shockproof housing. The whole housing of ADA PROLiner 2V/4V is protected from all sides. Rubber parts protect the instrument against damages during falls and hits.
Specifications:
Laser projection | 1H 2V 1D |
Working range | 20 m / 70 m (with receiver) |
Accuracy | ± 0,2 mm/m |
Self-leveling range | ± 3° |
Laser diode | class 2, 635 nm, < 1 mWt |
Dust/water protection | IP 54 |
Operating temperature | -10...+45° C |
Power supply | 4 batteries АА / 1.5 V |
Tripod thread | 5/8" |

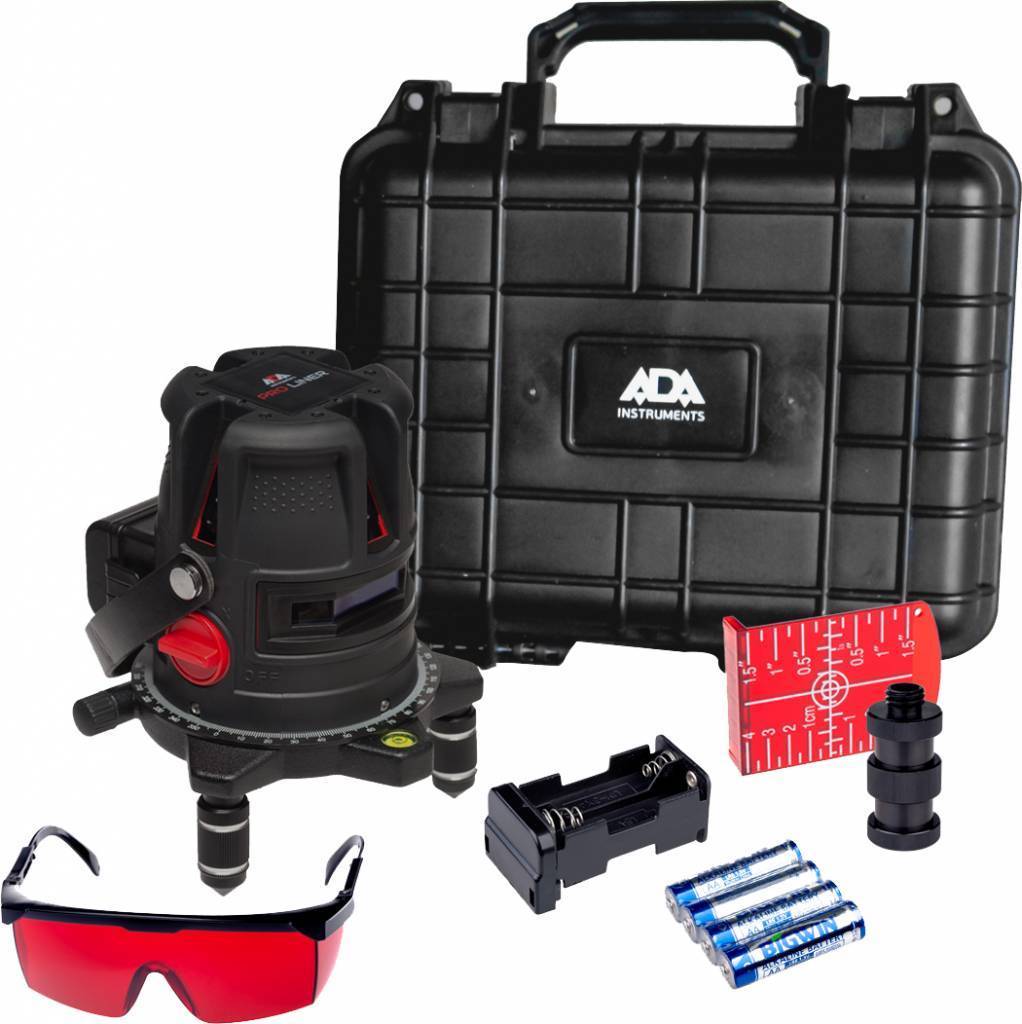

Includes:
- Line laser
- Batteries
- Operating manual
- Case
- Screw-extender
- Laser glasses
- Laser target
- TRP-170
