Universal clamp, Universal Mount
Brand:
ADA
Article number: | A00339 |
EAN: | 4620764636817 |
- 2 years Warranty
- Working days orderd before 17:00 hours same day send
- Whatsapp your questions to +31-655117271
- send a email to [email protected]
- Ordered before 4 pm, shipped the same day
Information
ADA Universal Clamp /Mount

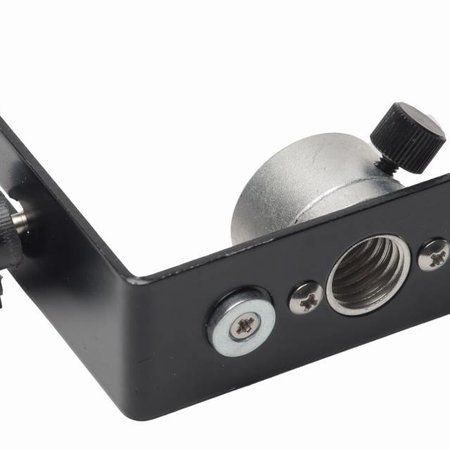

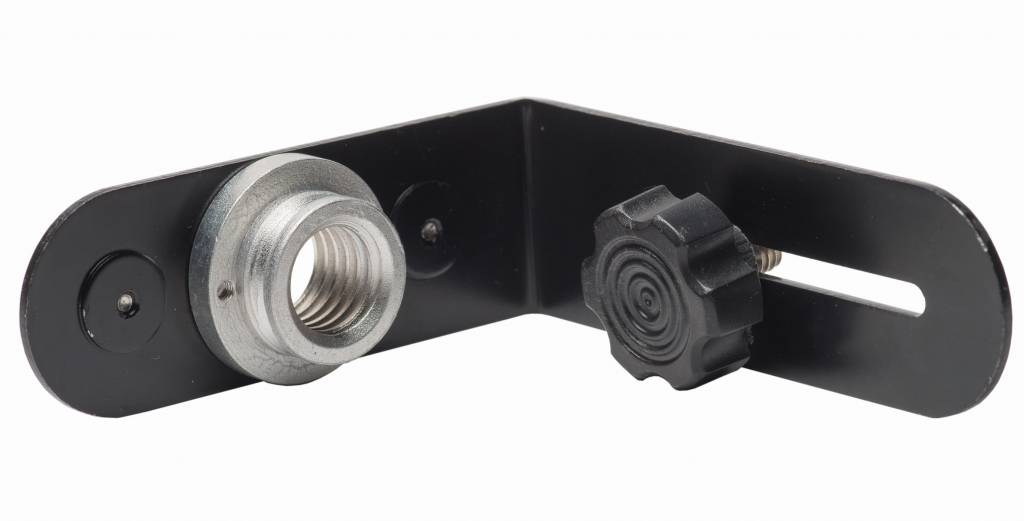

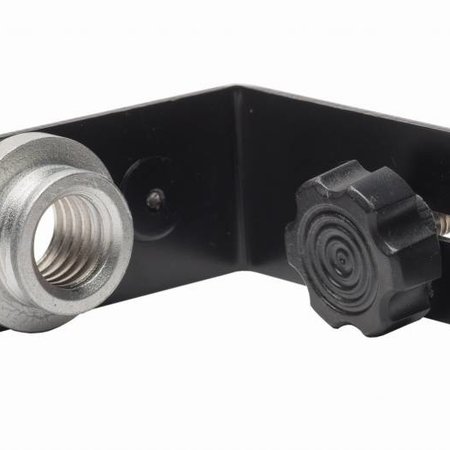

Universal clamp ADA Universal Mount is designed for attachment of light laser levels (up to 1 kg) on the wall, tripod and metallic surfaces. Attachment is made of metal in the form of angle. On one of its side there is:
- thread for the tripod 5/8’ with adapter for setting laser level, e.g. tripod-rod ADA Silver;
- magnets for attachment on metallic surfaces, e.g. guides for gypsum plasterboard;
- hole for the screw to attach on the vertical surfaces, e.g. on the wall;
On the further side there is a mounting screw with the thread ¼’ for setting laser level. Universal attachment ADA Universal Mount is used for small laser levels with the thread ¼’.
Material | metall |
Attachment | magnet, thread, bolt screw |
Angle of rotation, ° | 330 |
Thread for level, ’ | 1/4" |
Thread for tripod, ’ | 5/8" |
Weight, kg | 0,2 |
Dimensions, cm | 11x11x8 |
